Kitchen Before & After (lots of pics)

handyguys · 05-15-2009, 08:17 AM

OK - Here are some pictures.

^^ Wet wall before. Metal cabs below, vinyl floor, rolling dishwasher on left, refrigerator on left outside of picture. Picture taken from doorway between kitchen and dining room.

Wall between kitchen and dining room to be replaced by peninsula.

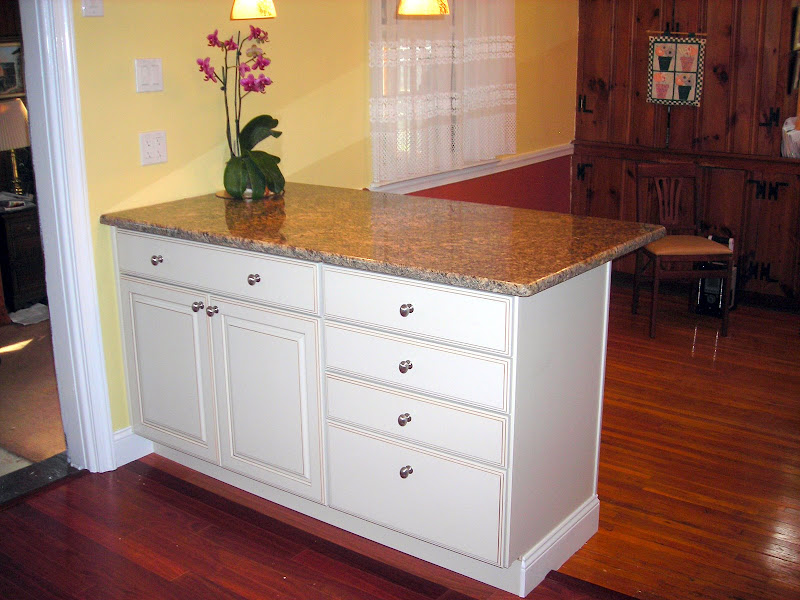

OK - So after. The wall between the kitchen and dining room was removed and a peninsula in its place with a cabinet below. All new cabs, floor, walls, electrical, plumbing, lighting. Doors and windows are still original.

After pictures....

DaveyDIY · 05-15-2009, 09:08 AM

Hey, you said lots of pictures!!

Very nice job

We need to redo our kitchen - but no tthis year
So I stripped & I am repainting the cabinets for now

handyguys · 05-15-2009, 09:14 AM

I did put a lot of pictures but then found I was restricted to four. I may do a post at my site with a bunh of pictures in the next couple weeks. New posts shows go up every Thursday at 5Pm ET.

BigSis · 06-17-2009, 05:08 PM

oh my gosh that is lovely! nice work

Nestor_Kelebay · 06-17-2009, 08:23 PM

I see a board between the dishwasher and stove to support the end of the counter top.

How is that board fastened to the floor, wall and counter top? I guess you have to be careful pulling the dishwasher and stove out for repairs so as not to knock that board loose?

What are your thoughts on stainless steel appliances. On other boards people have said they look nice when they're clean, but they're hard to keep clean because every time you touch the stainless steel it leaves fingerprints that continuously need to be cleaned off. Your thoughts?

handyguys · 06-18-2009, 07:20 AM

Quote:

Originally Posted by Nestor_Kelebay

I see a board between the dishwasher and stove to support the end of the counter top.

How is that board fastened to the floor, wall and counter top? I guess you have to be careful pulling the dishwasher and stove out for repairs so as not to knock that board loose?

Good eye Nestor. The board between the stove and dishwasher is attached to blocking in the wall and directly to the floor. The granite top is attached to the board, and cabinets, with silicone.

I used long screws and went at an angle. Sort of pocket hole style, or, you could say, toe nailed but with long screws. In the back, against the wall, I just drive the screws in. In the front I made a nice countersink for the screw head because I was worried it would show. In the end, it doesn't.

So, attachment before counters was three long screws. The addition of the top with silicone adds another dimension of strength. That board had very little play before the tops went in and now that the top is attached has ZERO play.

Quote:

Originally Posted by Nestor_Kelebay

What are your thoughts on stainless steel appliances. On other boards people have said they look nice when they're clean, but they're hard to keep clean because every time you touch the stainless steel it leaves fingerprints that continuously need to be cleaned off. Your thoughts?

Yes, they can be hard to keep looking pristine. This kitchen has a mix of brands (Bosch dishwasher, Kenmore stove, Whirlpool fridge, Microwave I forget, whirlpool maybe). The stainless really varies as to its receptiveness to fingerprints. Many manufactures have coatings and stuff that minimize fingerprints. There is also faux stainless that may stay cleaner. There are also cleaners that do a great job in shining stainless right up.

I would follow the specific recommendations for cleaning the specific appliance. I have heard that some stainless does have a clearcoat finish and that some harsh cleaning agents can remove that finish.

A little soap and water should be all you need usually.

Some more pictures and a podcast about the process is here
Episode #65 - A Handyguys Kitchen

meikitchens · 08-06-2009, 04:43 PM

Great difference. You have done a nice work.

Fencefence · 08-11-2009, 12:30 PM

Wow amazing job - it looks awesome!

If you are looking for a fence contractor anywhere from Miami to a Birmingham fence company then you can find them all at the North American Fence Builders Association.

macro01 · 08-19-2009, 12:09 AM

wow that is a nice one... amazing

handyguys · 08-24-2009, 07:40 AM

macro01, Fencefence, meikitchens, BigSis, DaveyDIY,
Thanks so much for your kind feedback!
