Old 03-22-2010, 11:10 AM
Philphine
don't give him tools!!!

Join Date: Feb 2007
Location: louisville, ky.
Posts: 120
Liked 1 Times on 1 Posts

Default

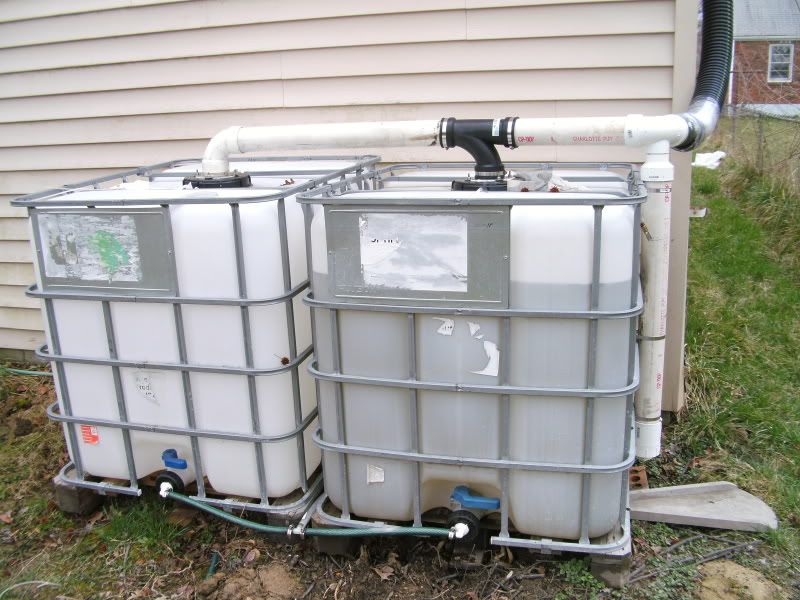

here's the initial hook up



still needs tweeking, but it seems like it's gonna work ok. i need to put them up on some cinder blocks i think. right now one has to fill before the second one does. we haven't had enough rain to see if that will happen, but if it doesn't work well enough i can add a valve at the bottom to fill the second one that way. where both would fill together.

really didn't take much rain to get the first near full. if you're local in louisville, the water in the first tank is just from the rain sunday and overnight (3/21). i thought two of these would be overkill, but if the tank transfer works good the second one will come into play with a good rain. i may even have to hook up an overflow if the 2nd one fills. i might hook up the third one, but right now i'm thinking of letting it work on it's own on the other side of the garage.

the pvc tube on the right is my try at making a "first flush" thing. it seems to work, but i think maybe it's a little too small compared to the overall setup. i added a piece of screen just after it to catch some of what it misses, and i saw some kind of micro screen filter i may try to get. i'm not trying to come up with drinking water, but i do want it to not look like a couple of tanks of scummy water in my backyard.

another small benefit i think, the yard doesn't seem as soggy as usual, but it wasn't a real heavy rain so i need to see what happens when heavier spring rains come. still that's about 200 gallons that didn't spill out into the yard.



__________________
Philphine is offline

Reply With Quote Quick reply to this message
Old 04-01-2010, 03:55 PM
brasilmom
Senior Member

Join Date: Jan 2009
Posts: 147
Default

[QUOTE=Philphine;42661]here's the initial hook up



Allow me to ask, are those totes food grade? I found some locally (in WI) but they all were used to hold chemicals for furniture, mattress, etc. Since my plan is to collect water for the garden, I do not want to contaminate the plants because the tote is contaminated. Do you mind sharing where you got from?
Thanks. Be well

Miriam



__________________
brasilmom is offline

Reply With Quote Quick reply to this message
Old 04-01-2010, 10:54 PM
Philphine
don't give him tools!!!

Join Date: Feb 2007
Location: louisville, ky.
Posts: 120
Liked 1 Times on 1 Posts

Default

i couldn't truthfully tell you what was in them originally. i got them off the local craigslist and i think the seller had cleaned them out some. they had a little soapy water in them. i'm thinking (hoping anyway) once they've had enough water in them it will dilute any of the soapyness that was left in them.

edit while i'm responding: finally got enough rain for the second one the start filling. a lot of leaking from the plastic elbow on top 'cause i didn't want to glue it on. i need a rubber elbow like on the first tank. my first flush needs work too. it uses a little ball that rises up and plugs the first flush, but i can't find a good ball for it. i found a solid-ish rubber ball and i guess it's gotten waterlogged and expanded so it get's stuck in one spot.

__________________

Last edited by Philphine; 04-01-2010 at 11:07 PM.
Philphine is offline

Reply With Quote Quick reply to this message
Old 04-28-2010, 10:23 AM
Philphine
don't give him tools!!!

Join Date: Feb 2007
Location: louisville, ky.
Posts: 120
Liked 1 Times on 1 Posts

Default

here's the third tank. much simpler and i got the bricks under it first this time



i used a diverter i got of ebay pretty cheap, and the output is just a hose leading to my pond project to help keep it full bettween rains. that was really why i wanted the tank in the first place so i'll be setting up some splitters and valves so the other tanks can feed the pond project too, or water a garden or whatever i need it for



the back of my garage. if i do a garden i'll probaly put it bettween the tanks. it would be easy to water if needed.

being the first year i'm trying them i'm seeing things i need to change. raise the main two obviously, and i'm still not happy with the filtering of the main two tanks. i'll have to keep reading up on this and maybe make some changes come fall/winter for next spring.

__________________
Philphine is offline

Reply With Quote Quick reply to this message
